indoor plant Ventilation System 6" Extractor Inline Duct Fan

FOB Reference Price:Get Latest Price
US $36-38 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Axial Flow Fan
Electric Current Type:
AC
Mounting:
Duct Fan, duct fan
Blade Material:
Plastic
Place of Origin:
Fujian, China (Mainland)
Brand Name:
OEM
Model Number:
ORPIF6
Voltage:
230V
Power:
28w
Air Volume:
20CFM-420CFM
Speed:
2500RPM
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
indoor plant Ventilation System 6" Extractor Inline Duct Fan
Color:
White
Noise:
31/26db
Material:
Heavy duty plastic
weight:
2kg
OEM Service:
YES
Usage:
Industry Greenhouse
Application:
Ventilation
Product type:
Square Axial Fan
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs in a small box,
6pcs in a outer carton
Port
Xiamen, Shenzhen
Lead Time :
25days

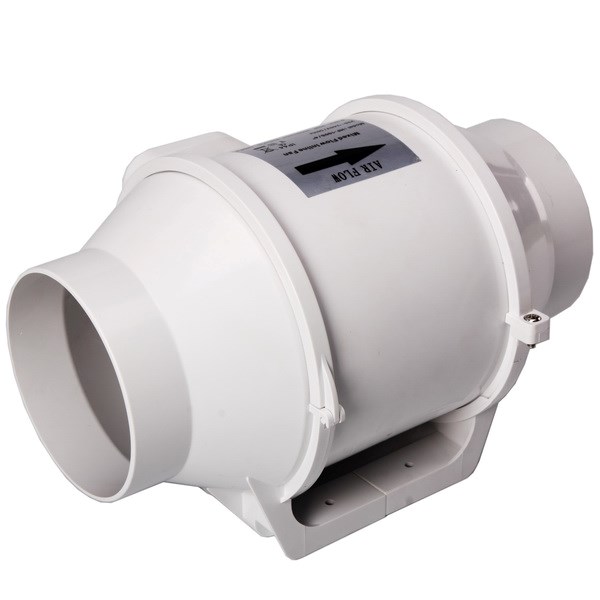

indoor plant Ventilation System  6" Extractor Inline Duct Fan

inlin fan (1).jpg

Main Feature

  • The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
  • Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
  • IP44 Protection class, waterproof and dustproof more effective.
  • Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
  • Run the ambient temperature range: -20°C~60°C.

Performance Parameter

ModelGearVoltage/FrequencyCurrentPowerSpeedWeightAir FlowAir PressureAvg. dBA@3m
(Amps)(W)(RPM)(Kg)(M3/H)(Pa)(db)
ORDIF4H230V/50Hz0.122622002.019815631
L0.1123185016513126
H115V/60Hz0.2630220019815631
L0.2428185016513126
ORDIF5H230V/50Hz0.143322501.828415931
L0.1328185024810626
H115V/60Hz0.3032225028415931
L0.2627185024810626
ORDIF6H230V/50Hz0.245425502.753030033
L0.2148185041024029
H115V/60Hz0.5865255053030033
L0.4953185041024029
ORDIF8H230V/50Hz0.5712824504.984035263
L0.52123195069027455
H115V/60Hz1.41162245084035263
L1.281461950690274

55

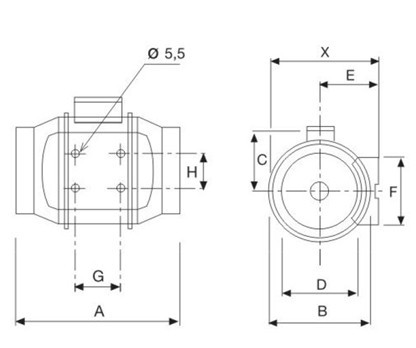

 Dimension Explain




ModelXAøBCøDEFGH
ORDIF418830317611597100908060
ORDIF5188258176115123100908060
ORDIF62123202001271471121308060
ORDIF8232.530221714119712414010094

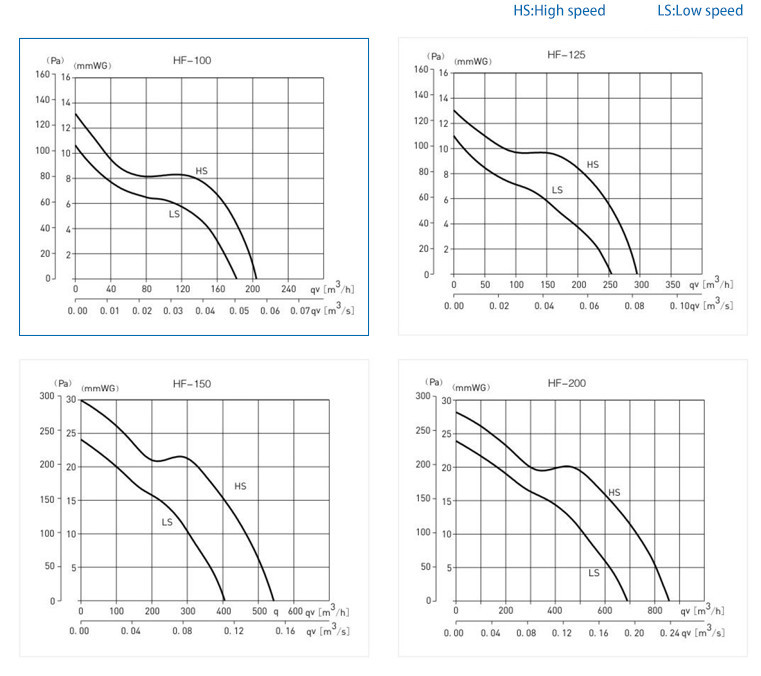

Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.




Fan construction



construction explain.jpg
