Quiet Hydroponic Inline fan flexible fan blower ventilation fan

FOB Reference Price:Get Latest Price
US $10-65 / Pieces | 50 Piece/Pieces Inline fan (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other, Centrifugal Fan
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Duct Fan
Place of Origin:
China (Mainland)
Brand Name:
Orientrise
Model Number:
ORIF100
Power:
190W
Voltage:
120V/60Hz,230V/50Hz
Air Volume:
290-2350㎡/h
Speed:
2600-2900
Certification:
CE
After-sales Service Provided:
Overseas third-party support available
Housing material:
galvanized steel housing
impeller material:
steel
quality:
top-level
color:
black, gray, sliver
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Inline fan
Packaging & Delivery
Packaging Details
CARTON/PALLET
Port
Xiamen
Lead Time :
within 3-4 weeks





paste-pic-dp_uuid_5rlea

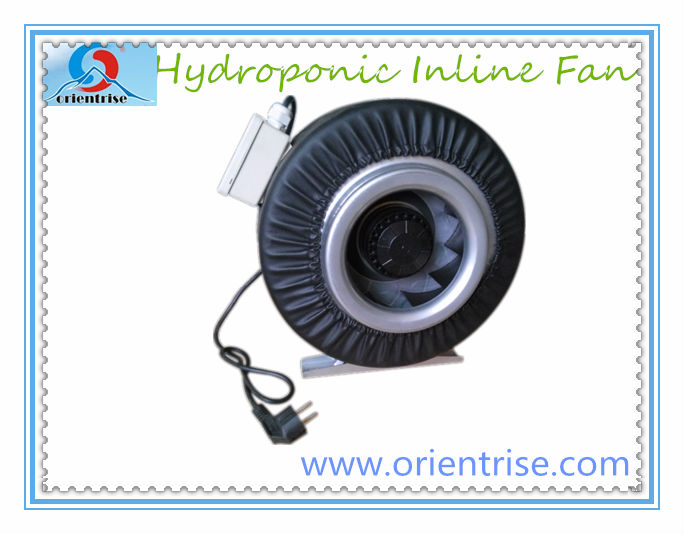

Quiet Hydroponic Inline fan flexible fan blower ventilation fan

Product Description



  Inline fan is used in the growing room to exchange stale air with fresh air to keep temperature and humidity under control and cool your reflector.


  The fan is suitable for operation at any angle and delivery exceptional airflow performances against the high static pressure.





  The inline duct fan features high power motor and aerodynamically designed shape. It is able to move air through long stretches of ducting, grow light reflector or carbon filters.


  Consist of housing, impeller, motor, bracket and connection box, the brief design making it easy to use.



It is quick to install and uninstall, and the impeller and the motor are combined to a whole with small volume and litter install space, mini size, reliable performance, high efficiency and long life.





Specific technical parameter:



Model

Voltage

Frequency

Power

Rotate

Air Flow

Pressure

(HCEU)

(V )

(HZ)

(W)

(R/Min)

CFM

(Pa)

Φ100mm

120 / 230

60 / 50

69

2600

100

360

Φ125mm

120 / 230

60 / 50

71

2600

195

390

Φ150mm

120 / 230

60 / 50

100

2510

265

430

Φ160mm

120 / 230

60 / 50

130

2520

285

475

Φ200mm

120 / 230

60 / 50

190

2520

470

620

Φ250mm

120 / 230

60 / 50

195

2540

650

635

Φ315mm

120 / 230

60 / 50

250

2540

950

720









Main features:

  1.  Drive by external rotor motor, powder coated in black
  2. Thermal protector AC motor
  3.  Aerodynamic design allows more air flow
  4. UL recognized components
  5. Mounting bracket included
  6.  Permanently lubricated bearings
  7. engineered for maximum boost with minimum noise
  8. Blade material is polyca

    Trade term & Payment term

    Trade term: EXW, FOB, CIF, CFR

    Payment term: Sample order requests full payment in advance, bank transfer or Paypal acceptable

    Bulk order request 30% initial deposit and 70% balance before shipping, bank transfer only

    rbonate





Our Services



What can I do for you?



*Design for products and custom tailor

*One-Stop-Purchase service

*Whole course of quality control

*Timely arrange for delivery

*Unobstructed communion





Company Information



Main products:  grow tent,dry net,bubble bag,lighting reflector,carbon filter



Main markets:  North America, Western Europe, Oceania, Southern Europe, Northern Europe



Our value: Better, Faster, Cheaper!

      As a professional manufacturer and exporter of gardening equipment in China, we have three subsidiary factories which specialize in different fields: grow lights, grow tents, grow pots, carbon filters and bubble bags. We hold the production principle of "we should be responsible for our customers, for the quality of our products and for our shareholders, that is, for every staff member".

factory view.jpg







paste-pic-dp_uuid_efrhp



  Not exactly what you want? Welcome to ask questions at any time!!!
