Hydroponics grow room duct inline fan 6"

FOB Reference Price:Get Latest Price
US $35-38 / Pieces | 500 Piece/Pieces (Min. Order)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Garden Greenhouses
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Orientrise
Model Number:
ORDIF6
Frame Material:
Plastic
Plastic Type:
Polyresin
Frame Finishing:
Powder Coated
Pressure Treated Wood Type:
Heat Treated
Feature:
Easily Assembled, Eco Friendly, Renewable Sources
Voltage:
220V
Power:
54W
Color:
White, black
RPM:
2550
CFM:
320
Speed control:
2 level
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs in a small box,
4pcs in a outer carton
Port
Xiamen, Shenzhen

 Hydroponics grow room duct inline fan 6"



Main Feature

  • The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
  • Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
  • IP44 Protection class, waterproof and dustproof more effective.
  • Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
  • Run the ambient temperature range: -20°C~60°C.

Performance Parameter

ModelGearVoltage/FrequencyCurrentPowerSpeedWeightAir FlowAir PressureAvg. dBA@3m
(Amps)(W)(RPM)(Kg)(M3/H)(Pa)(db)
ORDIF4H230V/50Hz0.122622002.019815631
L0.1123185016513126
H115V/60Hz0.2630220019815631
L0.2428185016513126
ORDIF5H230V/50Hz0.143322501.828415931
L0.1328185024810626
H115V/60Hz0.3032225028415931
L0.2627185024810626
ORDIF6H230V/50Hz0.245425502.753030033
L0.2148185041024029
H115V/60Hz0.5865255053030033
L0.4953185041024029
ORDIF8H230V/50Hz0.5712824504.984035263
L0.52123195069027455
H115V/60Hz1.41162245084035263
L1.281461950690274

55

 Dimension Explain



ModelXAøBCøDEFGH
ORDIF418830317611597100908060
ORDIF5188258176115123100908060
ORDIF62123202001271471121308060
ORDIF8232.530221714119712414010094





Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

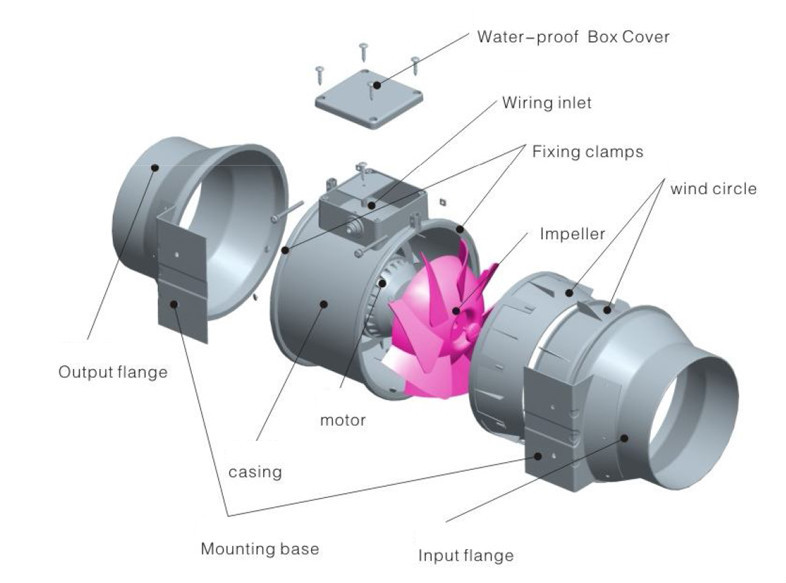

Fan construction



Factory Infromation



As a professional manufacturer and exporter of gardening equipment in China, we have three subsidiary factories which specialize in different fields: grow lights, grow tents, grow pots, carbon filters and bubble bags. We hold the production principle of "we should be responsible for our customers, for the quality of our products and for our shareholders, that is, for every staff member".
Thorough sound managing measures, strict quality control procedures and highly sophisticated and automatic equipment is our important approach for keeping the high quality and competitive prices of our products.

\

Packaging & Shipping
